Project Description

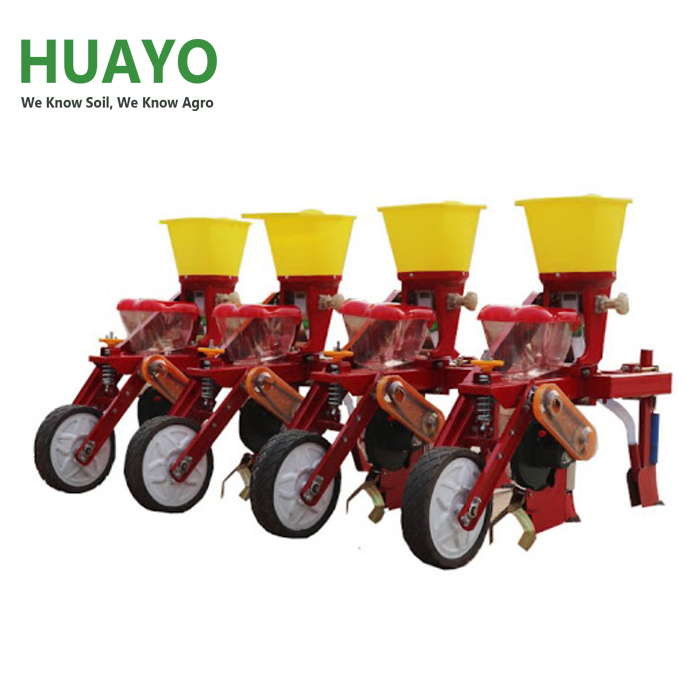

The 2BYF Series Tractor driven corn planter is ideal corn planting machine.
It is driven by tractor and can plant 2-8 row at one time, which highly improve planting effciency. With fertilizer box, it can plant corn and fertilize at same time.
The corn planter is specially designed and also used for no-tillage fileld . It can single grain precision sowing, or double grain precision sowing corn.
Besides, It can strip grain fertilizer, a furrow to complete the fertilization, seed-furrow, seeding, soil covering, suppression and other procedures.
The seed platter has high sowing precision, and the qualified index of grain number reaches more than 80%.
Technical Parameter
| Models | Unit | 2BYSF-3 | 2BYSF-4 | 2BYSF-5 |
| Rows | row | 3 | 4 | 5 |
| Row spacing | mm | 428-600 | 428-570 | 428-540 |
| Seed spacing | mm | Adjustable,140/173/226/280 | ||
| Ditching depth | mm | 60-80 | ||
| Fertilization depth | mm | 30-50 | ||
| Sowing depth | mm | 30-50 | ||
| Fertilizer tank | L | 68 | 86 | 86 |
| Seed box | L | 8.5 ×3 | 8.5 ×4 | 8.5× 5 |
| Weight | kg | 190 | 270 | 300 |
| Linkage | Three-pointed mounted | |||
| Matched power | hp | 15-25 | 25-40 | 40-50 |
