Project Description
Introduction
The Garlic Bulb Sorter apply for grading garlic bulb with sizes. Different garlic bulb size will be sorted and seperated to corresponding material outlets. The sorted garlic bulb can be packed and sell directly. It will save time and labor costs with 80%.
Structure
The Garlic Bulb grading machine is installed with 6 or 7 pathways , which adopts food-grade silicone belt. It is flexible, non-toxic, harmless, and anti-aging. They sort garlic bulb and convey same size out by slop.
All material contact part are stainless steel, and thickening of soft package. It will not damage the garlic bulb during sorting.
Advantages:
- 304 Stainless steel as machine raw material
- Apply for sorting Garlic bulb, fruit and Nuts.
- Home use 220v /380v appliable
- Easy to operate. Only need to press On/Off button
- Adopting hexagonal shaft + hexagonal wheel transmission design, no slippage for life
- Affordable price
Technical Parameter
| Model | 2m 7 Pathways | 2m 11 Pathways |
| Productivity | 2 t/h | 3-5 t/h |
| Sorting Range size | 4-7cm | 5-9cm |
| Motor | 0.75kw 220v/380v | 0.75kw 220v/380v |
| Outsize | 2.2*0.7*1.1m | 2.2*1.2*0.9m |
| Weight | 100 kg | 200 kg |
How to sort Garlic bulb
Pictures

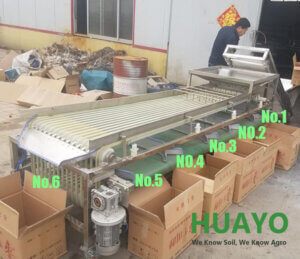

2m 6 pathways, sorting with 6 sizes
2m length, 11 pathways, sorting with 6 sizes
Sorted Garlic bulb
Garlic bulb sorter with 2m 6 pathways

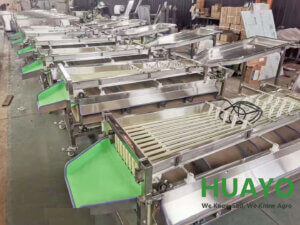

2m 11 pathways Garlic grading machine
Garlic bulb sorted by size
