Project Description

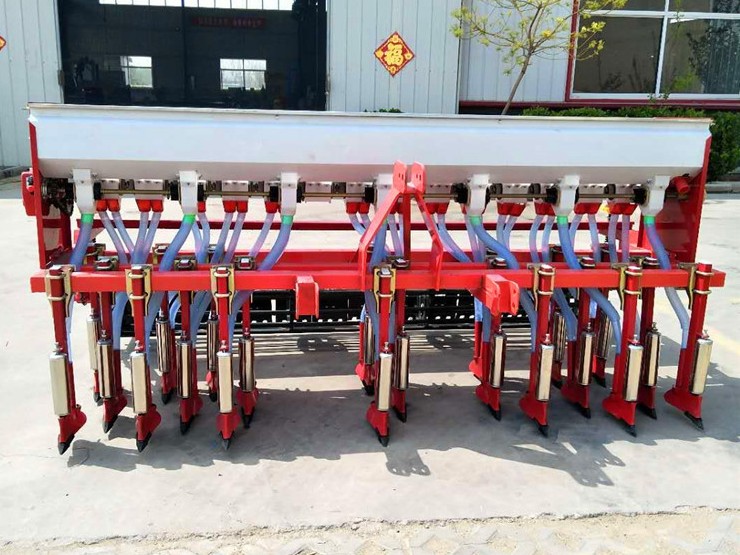

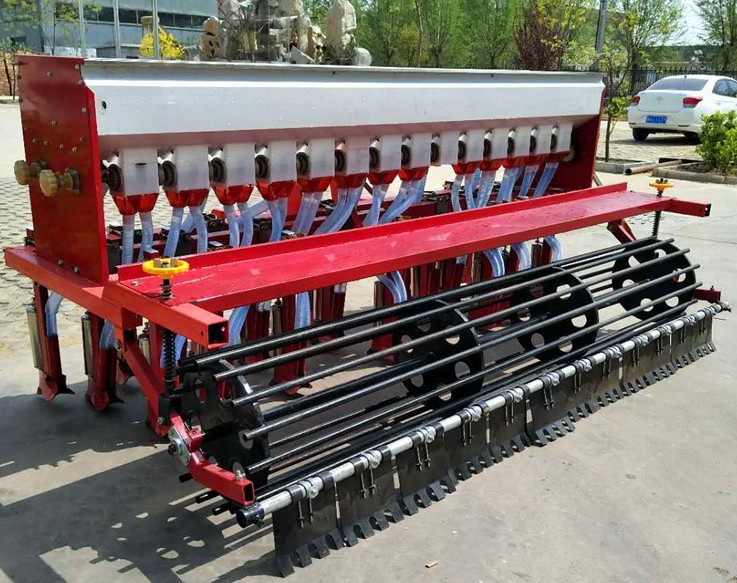

The 2BYW Series tractor driven wheat planter are ideal wheat seeds planting machine.  It is Three point hanging wheat seeder with fertilizer .

This series of wheat fertilizer seeder is the planting machinery of 15-100 horsepower tractor, which is suitable for corn fertilization and seeding in plain and hilly areas.It has the characteristics of good versatility, wide adaptability and even sowing.

The machine is suitable for sowing wheat in a variety of terrain, the separation of seed box and fertilizer box increases the amount of seed and fertilizer, the new fertilizer feeding hopper is made of mirror stainless steel, durable and beautiful.

This machine can complete flat, ditch, sowing, fertilizing, covering soil, vertical furrow and other procedures in one operation.Wide adaptability: can sow wheat, corn, soybean and other crops, suitable for China’s plain areas sowing operations.

The new generation disc trencher is produced by the advanced technology of manganese steel quenching, with high hardness, high strength, good soil penetration performance, and equipped with a soil scraping device, which can work well in clay.

The ridge building device can be adjusted from top to bottom and left to right. It can build the ridge and also fill the ditch. It can be reached at your fingertips without stopping the car when adjusting.

Technical Parameter

Model 2BYW-7
Planting row 7-14
Planting depth 20-100mm
Row space  150-580mm
Weight 220kg
Tractor power  15-120 HP
Seed box volume  100-300Kg
Fertilizer box volume  100-300kg
Capacity  10-14 mu/h
