Project Description

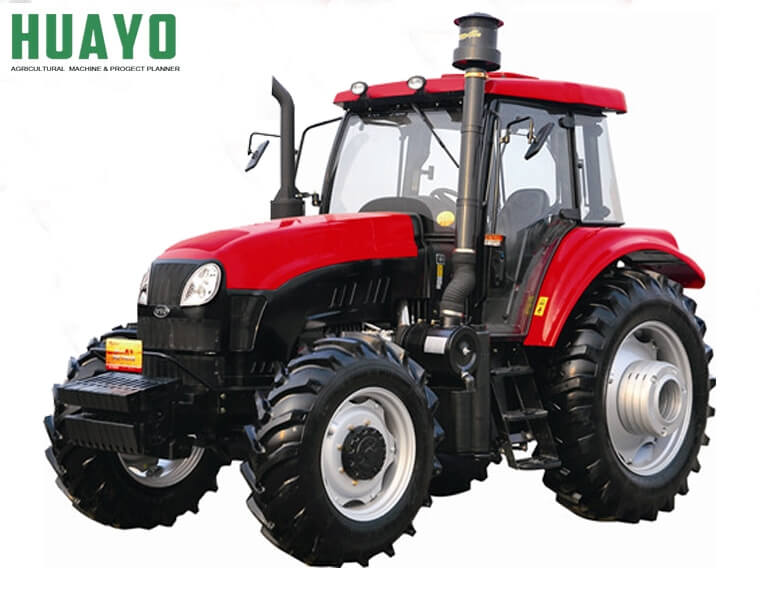

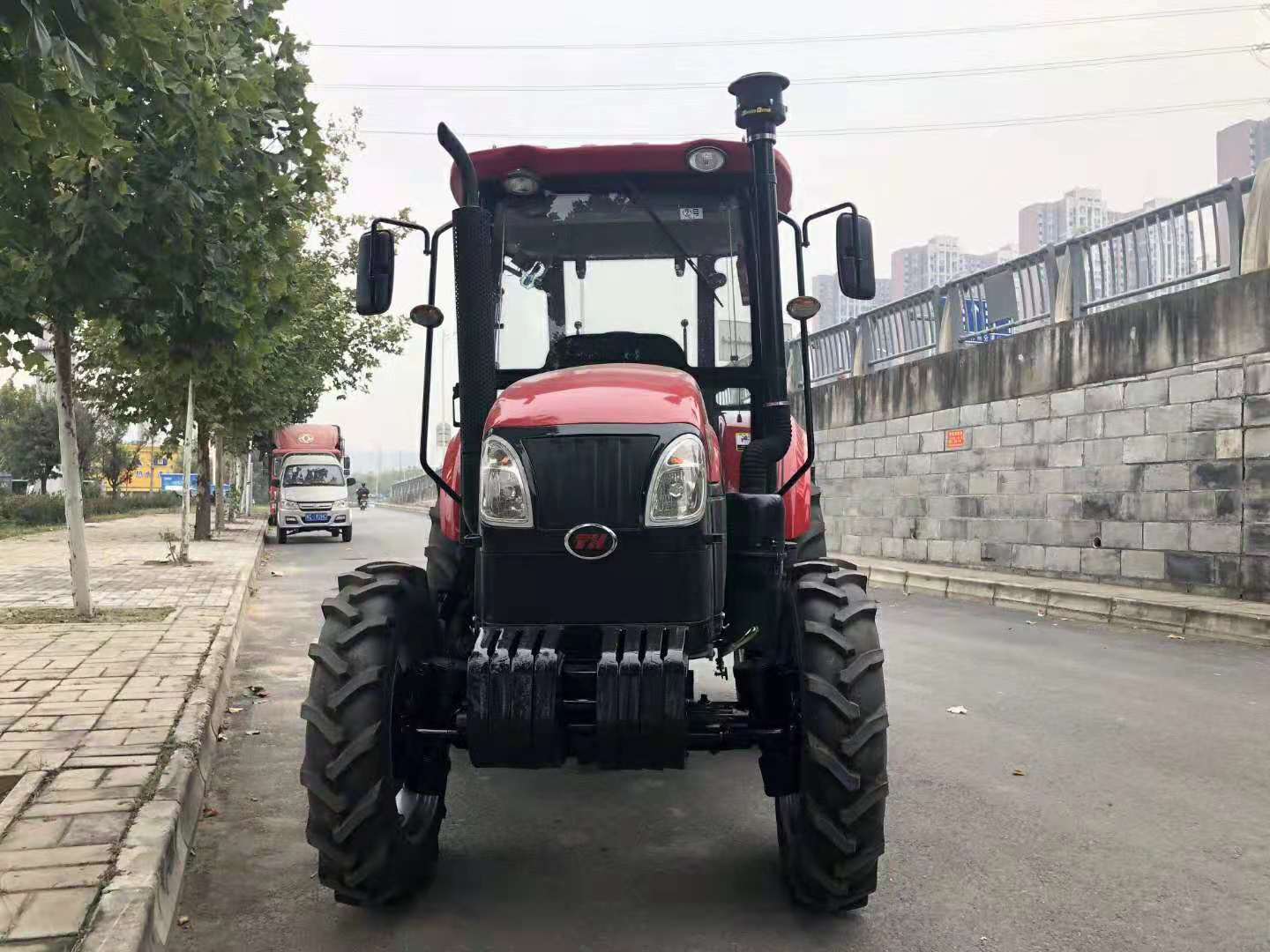

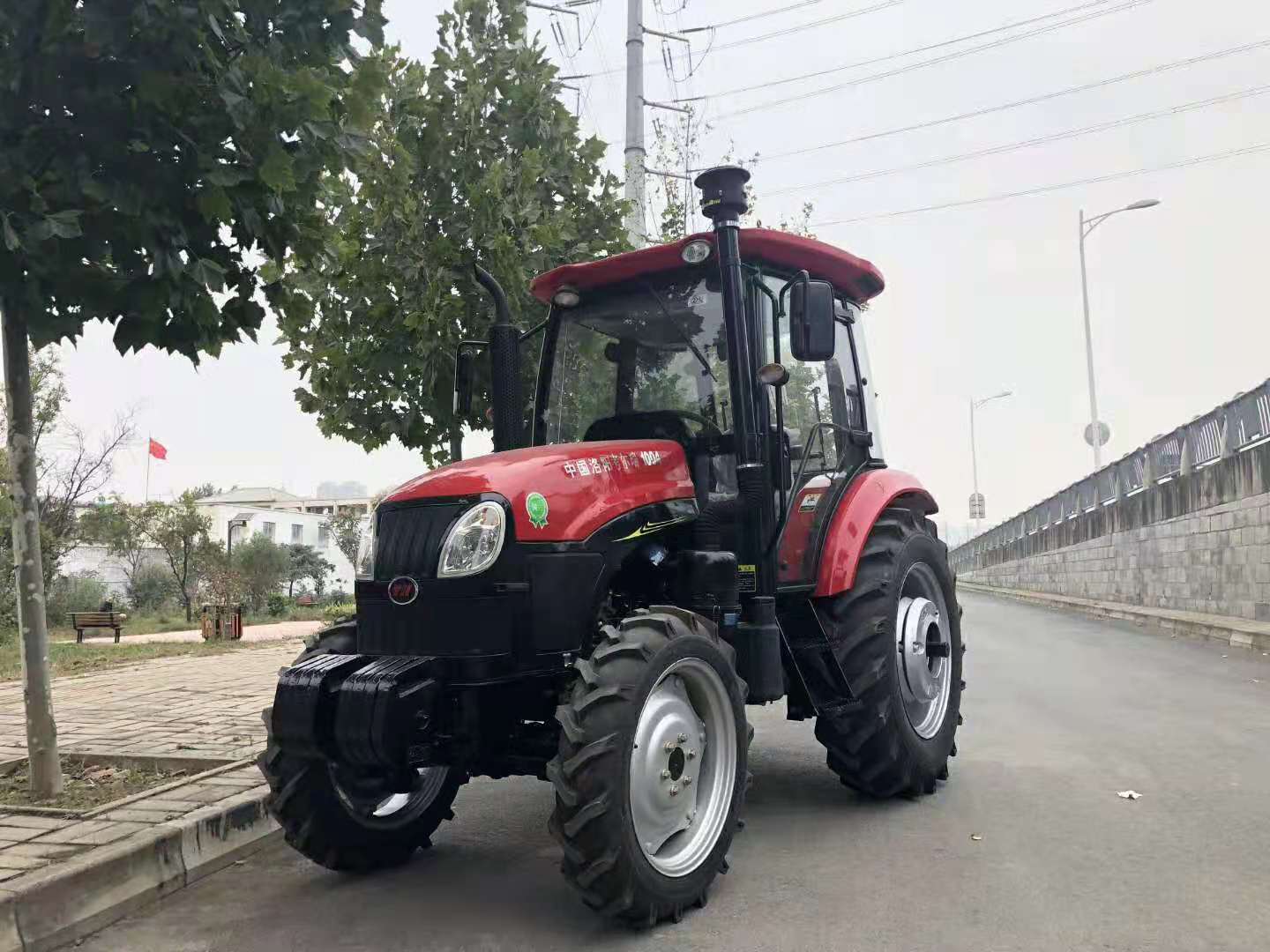

The TB Series Tractor are ideal equipment for farmers.
It can drive a series agri implements and improve efficiency. The 70-120 HP Tractor are supplied. both 4 wheel drive and 2 wheat drive.
The tractor can be attached with:
- – Disc Plough
- – Disc harrow
- – Disc Ridger
- – Trailer
- – Cultivator
- – Boom sprayer
- – Paddy tires
Technical Parameter
| Model | TB804 | ||
| Type | 4×4 | ||
| Overall Dimension （mm） |
L×W×H | 3900×1795×2700 | |
| Tread | Front Wheel | 1300 | |
| Rear Wheel | 1300 (usual),1400, 1500 | ||
| Wheel Base | 2072 | ||
| Min. Ground Base | 390 (the bottom of steering horizontal pulling rod) | ||
| Min. Usage Mass （kg） | 3100 | ||
| Engine | Model | Quanchai 4C6-80U32 | |
| Type | Vertical, water cooled and 4-stroke | ||
| Rated Power（kw） | 59 | ||
| Rated Rev.（r/min） | 2400 | ||
| Fuel | Diesel Oil | ||
| Tire | Front Wheel | 8.3-24 paddy tire | |
| Rear Wheel | 11.0-32 paddy tire | ||
| Clutch | dry-friction, dual stage | ||
| Steering | Hydraulic type | ||
| Transmission Box | 12F+12R Shuttle Shift | ||
| Suspension Type | Post Positioned Three-point Suspension Catalogue II | ||
| PTO | Type and Rev.（r/min） | Post-position, independent, 540/760 or 540/1000 | |
| Spline Size | I35 Rectangle Spline with 6 teeth | ||
